Air Bag Light Flashing, How to diagnose and fix

Air Bag Light Flashing, How to diagnose and fix

FBTwitterReddit

video description

Rating: 4.0; Vote: 1

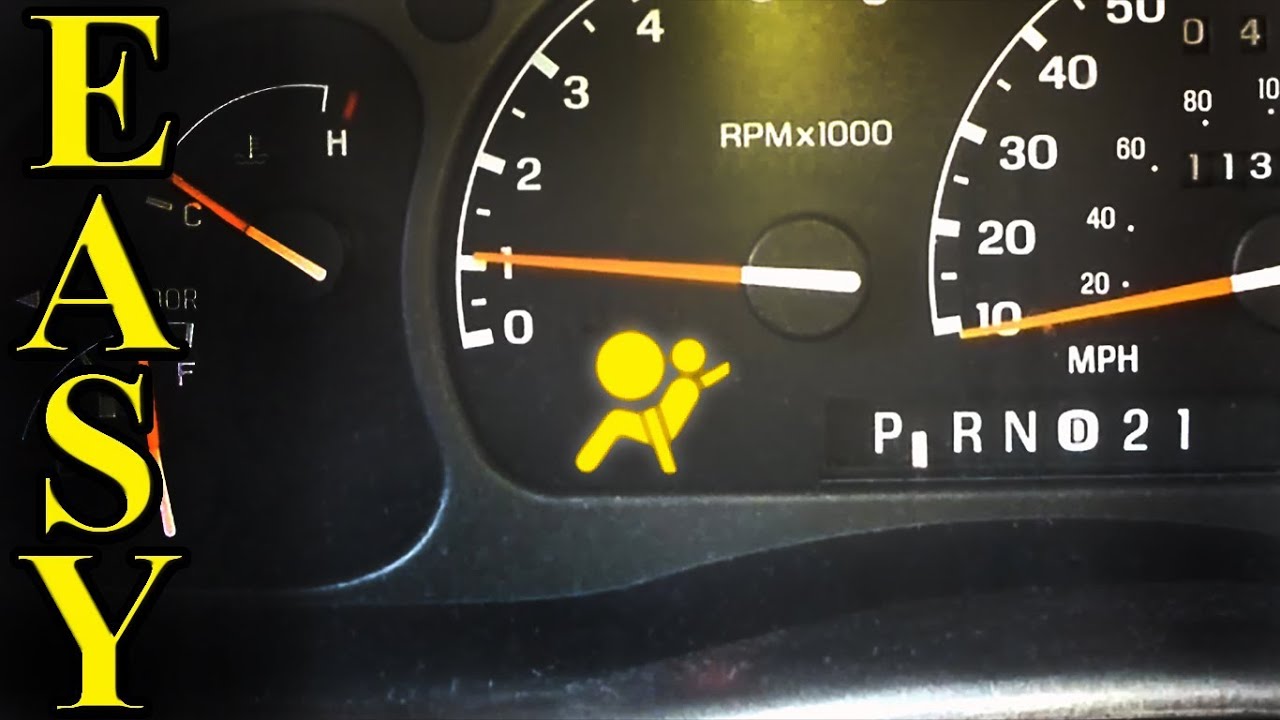

Airbag light on or airbag light flashing? This video will show you how to diagnose and fix a flashing airbag light. The flashing means that there is a fault with the system. You can read the number of flashes and it will give you a code (codes listed below for ford ranger and Mazda B3000. If your code is not listed, just google the year, make and model of your car along with airbag light code (ex. 2001 Mazda B3000 airbag light code. In this case it was code 4-6 which is the drivers side seat-belt pretensioner circuit which is cause by the wire/clip under the seat coming loose or getting moisture in it. Just separate the clip and spray some wd40 or electric cleaner in there and reconnect. Ford Ranger, Ford Explorer, Mazda B3000 Airbag codes (2000-2005) 15- drivers side air bag circuit shorted 16- passenger side air bag circuit shorted 19- restraint control module (RCM) memory full 24- restraint control module (RCM) internal fault 25- passenger air bag deactivation (PAD) switch fault 27- passenger air bag deactivation (PAD) warning lamp inoperative 29- Incorrect Vehicle Identification Code 32- driver air bag circuit resistance high 33- passenger air bag circuit resistance high 34- driver air bag circuit resistance low 35- passenger air bag circuit resistance low 43- front impact sensor 46- drivers side seat-belt pretensioner 47- passenger side seat-belt pretensioner Radio Shack Light Part #
Date: 2021-02-01

Comments and reviews: 10


My 2002 Ranger Airbag light stays on (no code given. I did turn off the passenger side because I never have a passenger and I turned it on again. Although a year ago I rear ended someone and the airbag on the driver side deployed. My mechanic replaced the entire steering wheel because it caught on fire for just a minute or so. I have a hard time getting back to check the new air bad system. I did look and there appears to be an Airbag in the steering wheel. I replaced the speed control switches and the actuator and the faulty horn and all those systems work well. All tied up in knots. Where do I go or what do I do. Head over to Autozone? And yes I checked the connectors under both seats and cleaned them out with a dremel thin wire bit and put anti corrosion WD-40.
Hold all bets. I finally got the code to work and it is the dreaded #- code. What is the 3-2 code? Clock Spring? Thanks. don out.

reply

I have a 1997 Ford Ranger xlt 2. 3l 2wd and my windshield wipers not working but the sprayer is still working. Ive changed the run relay and the fuse. I was wondering could it be the wiper motor or the box underneath the dashboard. can you do a video on that. Thanks and merry Christmas
reply

Hey Chris, I'm at the mechanic now and my front impact sensor came on for my 08 Acura TSX. I was not in an accident, I may have tapped one of those restaurant barricades, as there was parking in between and I was squeezing my car in. Can it be resetted or should it be changed?
reply

Quick Fix Chris worked like a charm! tyty question about 33 tires on my B3000, seems like the tie rod ends are twisting back and i get a creaking sound on the right turn ( but not the left) hmu, airbag light just went off after wd40 confirmarooni! Love Yah Bro
reply

How do I know which wires do I change on my 07ford focus I change my front seat in my Ford Focus for Volvo s40 seat can u show me how do I connect the switch on under my seat for airbags and the belts will them seats work in my focus thanks
reply

Hello chris, thanks for any help you can provide. I have a 2005 LaCrosse cxs and replaced booth front seats with 2008 LaCrosse seats when starting airbags light flashes 6 times. Stays on all the time. Electric seats. Thanks Michael
reply

WD40 is a good product but DeoxIt is vastly superior for cleaning and preserving electrical contacts. It's magic in a can. I spray it onto my contacts anytime I have to disconnect anything. Trust me, DeoxIt is the best.
reply

I have the opposite problem. my airbag light is OFF at all times, and doesn't flash/go through the test when I turn the key to ON or start the car. Any idea(s) what could cause this? 2011 Hyundai Elantra. Thanks!
reply

Thanks Brother. Helped me look like I knew what I was doing when I fixed my GFs flashing code while she went into the Post Office. She was like Wow! That was quick! And I replied That's what the Ladies tell me
reply

I tried the wires underneath the bottom of the seat, spray it with the WD-40 as well & did that like you did. Airbag is still showing up on dashboard. Do you think the car perhaps needs a new light?
reply
