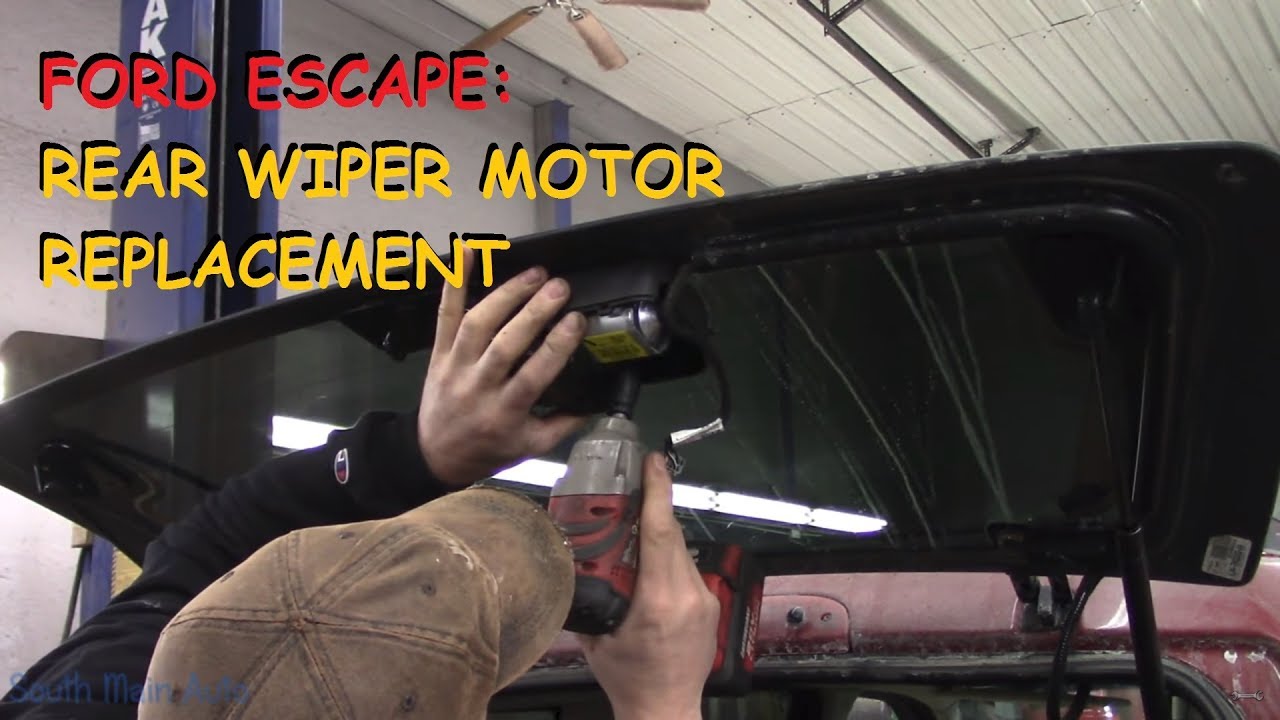

Ford Escape: Rear Wiper Motor Repair
video description
Additional suggestions:
-to split the plastic motor clamshell inside the door, a penny is a good tool. Insert and twist.
-before popping the plastic cover off the outside I poured hot water on it to soften, then carefully pried the sides apart with two hands before pulling outward. No damage.
-The wiper arm can be popped off by squeezing with visegrips if you dont have a puller. Put a screwdriver blade under the back of the arm, replace the small retaining nut on the threaded shaft end, and squeeze between these two. Alternately squeeze top and bottom of blade arm, many times The blade arm is jammed onto a tapered spline shaft, once cracked loose it slides right off. Do not waste time prying with a screwdriver between the arm and the delicate cosmetic cone beneath it.
-the 22mm hex nut can be removed with a 7/8 box wrench (otherwise a deep 22mm socket)
-the hex nut, once broken loose, may strip the plastic fine threads on the shaft, so it wont unscrew, just spins in place. To get it off, I pushed a wooden hammer handle hard against the shaft end, into the glass, while turning the 7/8 box wrench, and it finally unscrewed
-You need to get a NEW 22mm hex nut, Ford part #8L8Z-17481A, about 6. 00, because the cruddy threads of the old nut will probably cross-thread the fine plastic threads on the new motor, ruining it. (Unless your hex nut came off clean as a whistle, not likely)
