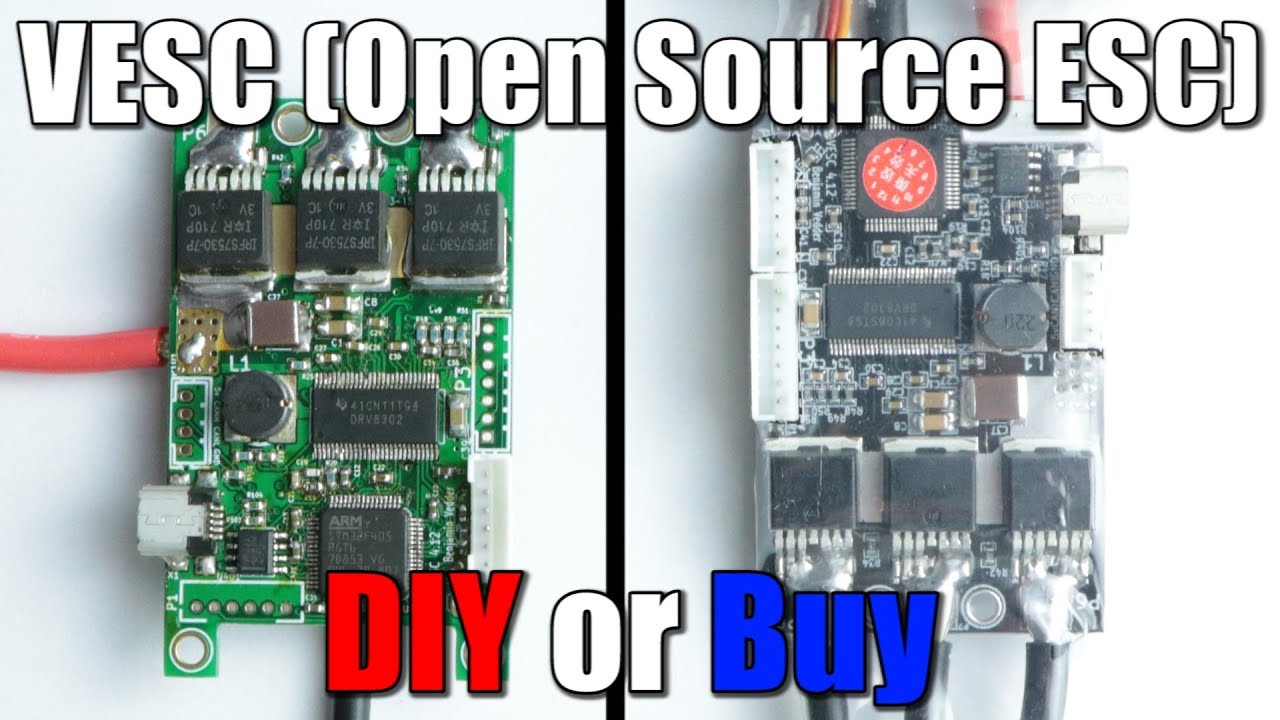

VESC (Best Open Source ESC) DIY or Buy
video description
Experiment with different types and amounts of soldering flux.
The low viscosity (thin flowing) type is preferred.
It has surprisingly huge effects on your soldering work.
In the case of soldering the IC's first try lightly tin the pcb IC pads.
Then clean as usual and flood the IC pads with flux such that the IC pad area literally is a pond (lake) of flux.
Now do the actual soldering in the wet flux.
You will see that the solder tends to automatically flow to where it should be.
You can still use solder paste, but you must control the amount very accurately, as any surplus solder has no where else to go, than the nearest solder pad or pin and will collect there.
