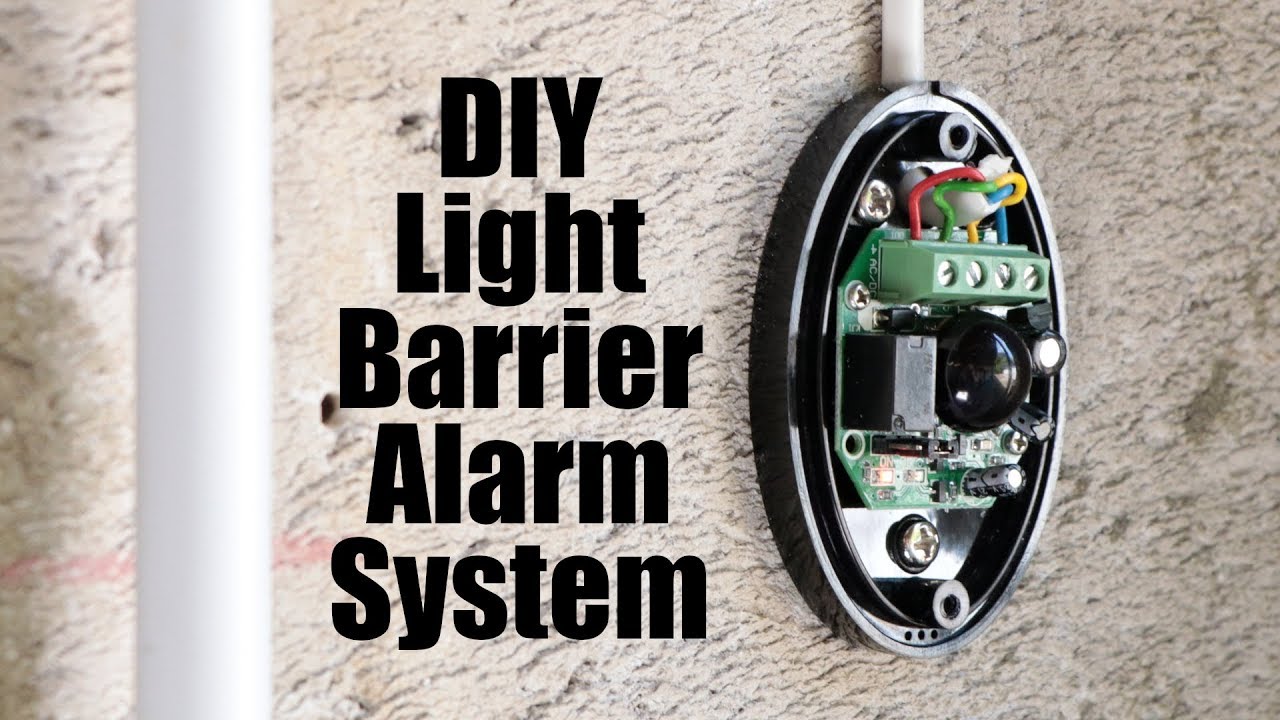

DIY Light Barrier Alarm System with an industrial grade PLC (Controllino)
video description
Mounting the reed switch on the frame with the magnet on the door which is how they are usually installed also simplifies the wiring and avoids the wiring moving everytime the door is moved making it much less likely to have a failure
Inside you could have a simple hidden switch or a keyswitch to disable the alarm before the time limit runs out, and the reverse when setting it and exiting the garage
Wifi connectivity to your home if close enough, or SMS notification to your phone would have been a good next upgrade
For an improved approach I would have suggested a door contact on the door purely for entry time, inside the garage would be the on off switch so once the door opens a person has maybe 15 seconds to figure out how to disable it before it activates, for the volume of the room a dual tech sensor (PIR and Microwave volumetric sensor, a battery back up for the device, and either WIFI or SMS notification so you know the garage is being broken into from anywhere
Someone should NOT be able to completely disable the system from outside as they c an with this approach, they c ould even just move the magnet by accident whilst trying to break in without even knowing there is an alarm in which case it would do absolutely nothing
So activation and deactivation should occur WITHIN the protected area
If you had wifi or SMS notification you would even have the ability to catch them breaking in, as without knowing they had tripped an alarm they would take more time, then if you didnt respond to the signal the sounder could go off after a predetermined time but give you the option to override the siren so they wont even know
you could also make a cheap CCTV system with the USB camera from an old laptop and use a raspberry pi or similar to record footage if that controller doesnt have enough processing power or other required features
